A PCB with components mounted on is called an assembled PCB and the manufacturing process is called PCB assembly or PCBA for short. Quint tech offer one-stop PCB assembly service, from PCB fabricate, components sourcing to PCB Assembly, with fast turnaround.

Send Inquiry

Product Description

1. Product Introduction of the PCB assembly

PCB assembly is a kind of service for assembled PCB, it include SMT and DIP.

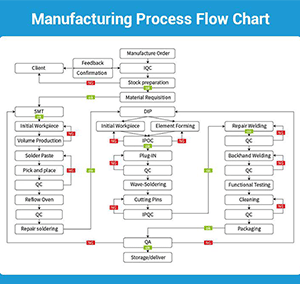

SMT process is Solder paste printing --> parts placement --> reflow soldering --> AOI optical inspection --> maintenance --> sub-board.

2. Product feature and application of the PCB assembly

The advantages of PCB Assembly processing: high assembly density, small size and light weight of electronic products. The volume and weight of chip components are only about 1/10 of that of traditional plug-in components. Generally, after SMT is adopted, the volume of electronic products is reduced by 40%~60 %, the weight is reduced by 60%~80%. High reliability and strong anti-vibration ability. The defect rate of solder joints is low. Good high frequency characteristics. Reduce electromagnetic and radio frequency interference. It is easy to realize automation and improve production efficiency. Reduce costs by 30%~50%. Save materials, energy, equipment, manpower, time, etc.

3. Product Qualification of PCB Assembly

After receive the order from customer, before PCB assembly production, first we would check the PCB gerber file, and sourcing the components, with strict inspection of incoming materials.

Make steel stencil according to PCB requirements, strictly control the temperature and speed of reflow soldering, and strictly implement AOI inspection, also we have ICT, FCT, aging test, temperature and humidity test, drop test.
