One Stop PCB Assembly

One Stop PCB Assembly is committed to supplying the fast speed one stop pcb assembly service for the makers, electronic engineers.

Send Inquiry

Product Description

1.  Product Introduction of the One stop PCB Assembly is committed to supplying the fast speed one stop PCB assembly service for the makers, electronic engineers, and all electronic users. In order to help customers shorten product development time and build better market competitiveness.

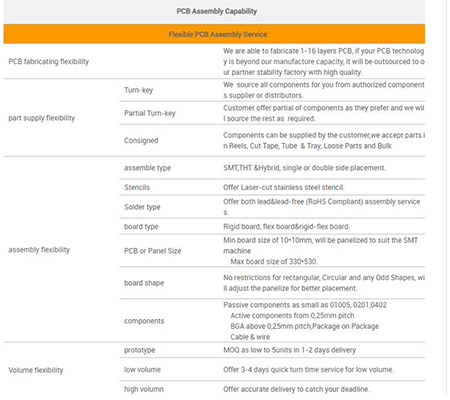

We offers one-stop and high-quality PCB prototype services, and affordable PCB assembly (PCBA) services that include PCB manufacture, components procurement and assembly all-in-one.

2. Product Feature And Application of the One stop PCB Assembly

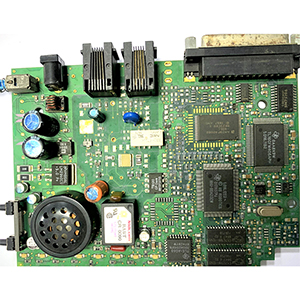

One stop PCB(Printed circuit board) assembly is the process of connecting the electronic components with the wires on printed circuit boards to make PCB work. The traces or conductive pathways engraved in the laminated copper boards of PCBs are used within a non-conductive substrate in order to form the assembly.

PCB Assembly including Surface Mount Assembly(SMT),is currently being widely used by many PCB assembly manufacturers and hobbyists. The process includes components with metal tabs that can be easily soldered to the PCBs. The technique offers higher circuit densities when the components are fixed at both sides of the PCBs with effective soldering methods.

Another assembly way is Plated through-hole technology (PTH):

This process applied for components with leads attached to them. PCBs used for this kind of assembly method always come with drilled holes. It is easy to assemble the PCBs with the components as the leads are effectively inserted into the drilled holes.

3. Product Qualification of the One stop PCB Assembly

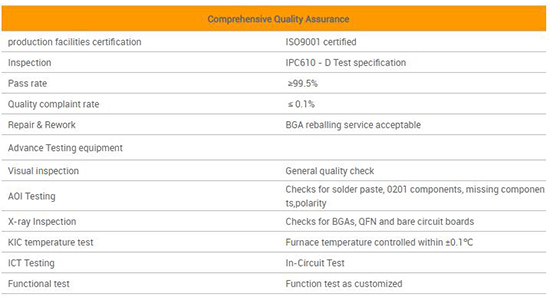

One stop PCB Assembly qualification as below.

4. Deliver, Shipping And Serving of the Electronic product design for LED PCB

Prototype deliver within 10 days shipping by DHL/UPS/Fedex

Batch production 10000pcs deliver within 3weeks.
