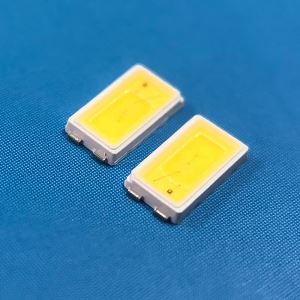

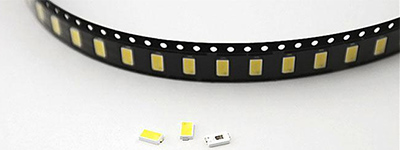

1. Product Introduction of the SMD 5630 PCBA LED PCB
SMD 5630 PCBA LED PCB utilizing leaded or lead-less package styles was another innovation in LED package styles. This type of package did not require PTHs. Plastic Leaded Chip Carriers are popular with sizes based on surface mount electronic formats such as chip capacitors. This format was also incorporated into devices with more than 1 LED die, including 3-die RGB formats with 4 I/O. With the advent of chip-scale packaging, which is a leadless SMD format particularly utilized for Power LEDs, back-side solder pads are used for I/O, as well as a “thermal pad” that transfers the heat to the PCB, with the PCB typically having a number of PTH used for thermal purposes of transferring the generated heat to the backside of the PCB.
SMD 5630 PCBA LED PCB including
Mid-Power LEDs: This style LED typically utilizes a SMD format. It is based on 500 x 500 micron or similar sized die, usually 1 die/package.
High Power LEDs: This style LED typically utilizes a SMD format. It is based on 1000 x 1000 micron or similar sized die, usually 1 die/package.

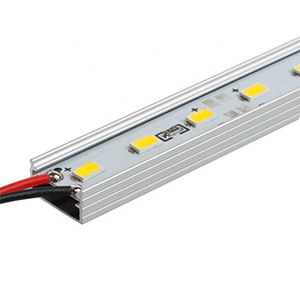

The packaging for signage, video display, architectural, personal and general lighting applications. Price affordable, suitable for all kinds of flashlights, lighting, lamps.
100% ICT testing. Ensure all leds are lighting.
4. Deliver, Shipping And Serving of the Electronic product design for LEDPCB
Prototype deliver within 10 days shipping by DHL/UPS/Fedex
Batch production 10000pcs deliver within 3weeks.
