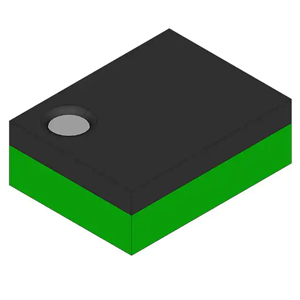

1. Product introduction of the IC for Maxim SWITCHING REGULATOR
The IC for Maxim SWITCHING REGULATOR is a kind of Maxim pulse-width modulating (PWM), low-noise boost converters are intended for low-voltage systems that often need alocally generated high voltage. These devices are capable of generating low-noise, high output voltages required for varactor diode biasing in TV tuners, set-top boxes, and PCI cable modems. The MAX5025–MAX5028 operate from as low as 3V and switch at500kHz.
2. Product feature and application of the IC for Maxim SWITCHING REGULATOR
Feature
1). Input Voltage Range:3V to 11V (MAX5026/MAX5028)4.5V to 11V (MAX5025/MAX5027)
2). Wide Output Voltage Range: VCC to 36V
3). Output Power: 120mW (max)
4). User-Adjustable Output Voltage withMAX5025/MAX5026 Using External Feedback Resistors
5). Fixed 30V Output Voltage: MAX5027/MAX5028
6). Internal 1.3Ω (typ), 40V Switch
7). Constant PWM Frequency Provides Easy Filteringin Low-Noise Applications
8). 500kHz (typ) Switching Frequency
9). 1μA (max) Shutdown Current
Applications
1). TV Tuner Power Supply
2).Low-Noise Varactor Diode Biasing
3). Set-Top Box Tuner Power Supply
4).PCI Cable Modem Voice-Over-Cable
5). LCD Power Supply
3. Product Qualification of the IC for Maxim SWITCHING REGULATOR
For the IC for Maxim SWITCHING REGULATOR, it’s with RoHs3 compliant, and we guarantee that all the parts we offer is new and original, any quality problem, do false a compensate ten.
